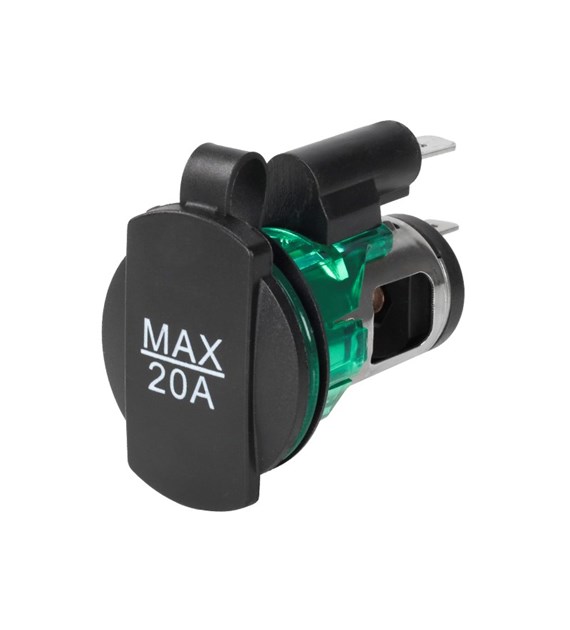

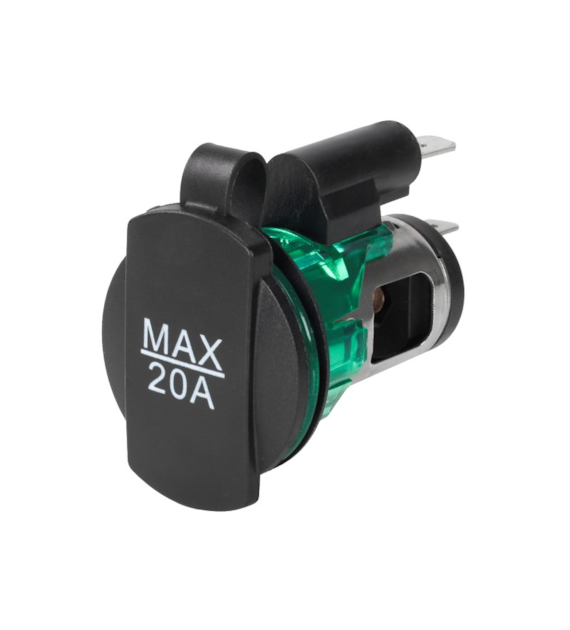

EURO electrical socket, 12/24V, 20A max - carmotion.pl platform
Download in full size
MARKING
Barcode 5903140632252
Symbol 63225
LOGISTICS

Measure
unit:

pcs.
1
Product
h A B Weight
150 100 30 0,04
Collective packaging
Collective packaging
200 pcs.
200
DESCRIPTION
It is suitable for all vehicles equipped with 12V DC power supply. Use: 1. Make a hole with a diameter of 26 mm. 2. Place the plug in it. 3. Secure the socket with 2 screws. 4. Connect the red wire to the positive (+) pole. 5. Connect the black wire to the negative (-) terminal of the outlet. 6. Use 6.3mm wide clips to connect the wires. 7. It is recommended to connect the socket with a 15A fuse. Important! 1. Make sure the power is turned off before installation to avoid the risk of electric shock. 2. When connecting the wires, be sure to connect the red wire to the positive (+) pole and the black wire to the negative (-) pole to ensure the correct polarity. 3. Do not exceed electrical limits as this may cause overheating and damage the outlet and other electrical components. Technical specifications: Voltage: 12/24V Power: 240W Curent: 20A. GREEN BACKLIGHT. EURO TYPE.
