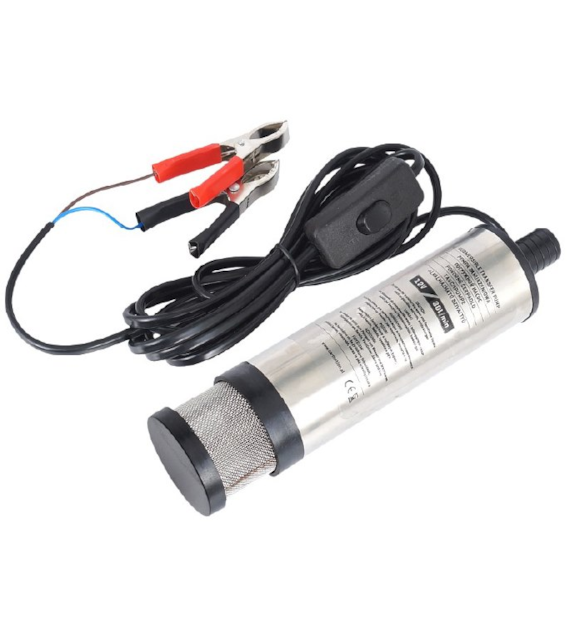

Submersible fuel pump diam. 50mm 24V with strainer

Categories: Electrical \ Fluid pumps CARMOTION

MARKING

Barcode 5901698861391

Symbol 86139

LOGISTICS

Measure
unit:

pcs.

Box

Product

h	A	B	Weight
215	103	61	0,51

Collective packaging

Collective packaging
20 pcs.

DESCRIPTION

A 12V submersible pump with a diam. of O50 mm is designed for pumping diesel oil, heating oil and other liquids of similar density. Very handy and convenient to use. A special filter made of metal mesh at the pump inlet (bottom) prevents suction of elements that may damage Device and contaminate the liquid. The throughput is approx. 15L / min when powered by 24V DC. Usage: The temperature of the pumped liquid should not exceed 30 ° C, and the maximum ambient temperature should not be higher than 40 ° C. Use: Connect a hose with an inner diam. of 16 mm (max. length 3 m) to the pump and fix it firmly with a hose clamp. Immerse the pump in the liquid. Connect the red clamp to the positive "+" pole and the black clamp to the negative "-" pole. Start the pump with the switch on the cable. After 30 minutes of continuous operation, turn off the pump and wait 15-20 minutes . Restart after it is completely cool. Make sure the pump is completely empty and free from liquid after pumping. Clean the filter if necessary. Important safety rules: Do not use the pump to pump alcohol and other flammable liquids, such as: gasoline, solvents, acids, gas. Do not start the pump before connecting the hose. Do not change the anode and cathode connections on the battery terminals. Never go near the pump with a fire source.
